VOLT6000
The most powerful class of headlight in our range.
FEATURE
[HL-EL6000RC]
6000 lumens turn dark into day for an unparalleled night riding experience. Whether you’re looking for an unfair advantage at the next 24-hour race, or just seek the solitude of singletrack at night, you no longer have to slow down when the sun goes down.
- High power rechargeable headlight with ultra bright COB LED (6000 lm)
- Super wide beam with OPTICUBE™ technology
- Large capacity Lithium-ion battery
- Universal battery charger included
- Remote switch for easy button operation

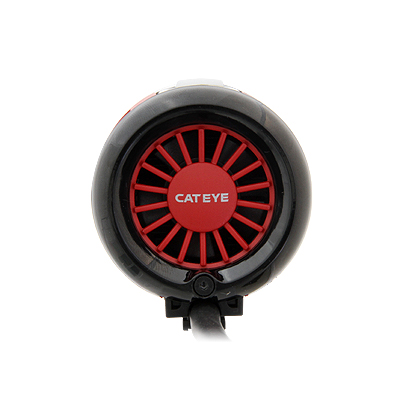

- CatEye own designed fan combined with control circuit provides regulated brightness
- Low battery indicator
- 6 light modes *Charging time: 5h
- Double click of the switch changes the light pattern from current mode to Dynamic mode
- FlexTight™ bracket designed for VOLT6000
※Design and specifications are subject to change without notice.
Beam Chart
You can compare two lights side by side. Move the centerline to the right or left to adjust the area. Click on mode button to change modes.
Tech Specs
- Dimension：
- Light unit：47.0 x 59.0 x 52.0 mm
Control unit/battery unit：199.0 x 46.0 x 68.0 mm
- Weight：
- Light unit：118 grams (including the bracket and cable)
Control unit/battery unit：550 grams
- Light source：
- COB LED
- Run time：
- Dynamic mode 6000 lumens：1hr
High mode 4000 lumens：2hrs
Middle mode 2000 lumens：4hrs
Low mode 1000 lumens： 8hrs
All-Night mode 500 lumens：12hrs
Hyper Constant mode 2000/500 lumens：11hrs
- Battery：
- Battery unit：Li-ion rechargeable battery (14.4V-6800mAh)
Remote control switch：Lithium battery (CR1632) x 1 (approx 2-month battery life)
- Recharge time：
- approx 5hrs
- Recharge/discharge number of times：
- about 300 times (until the rated capacity drops to 60%)
- Water resistant：
- IPX4
- Other：
- Low battery indicator and mode memory function. Remote wireless switch, helmet mount and extension cable included.
Small Parts
-

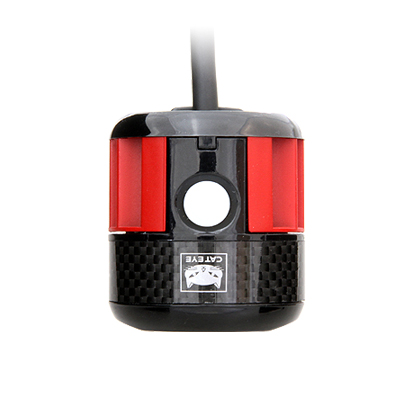

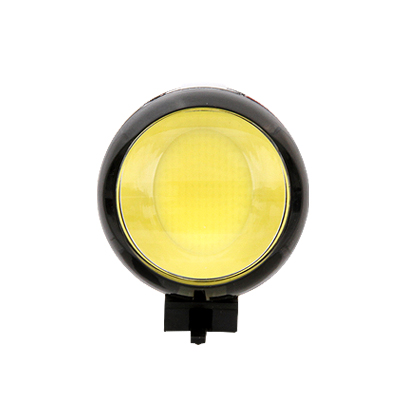

Light Unit（5343020）
-

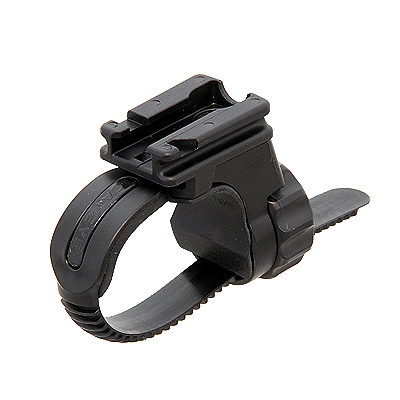

FlexTight™ Bracket（5338829N）
-

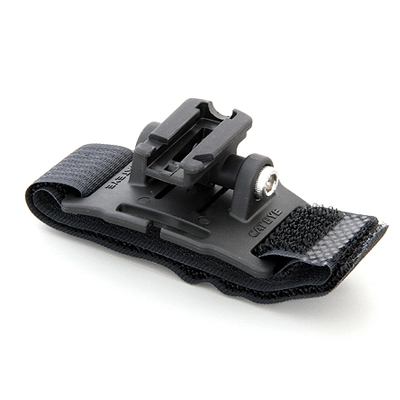

Helmet Mount（5341832N）
-

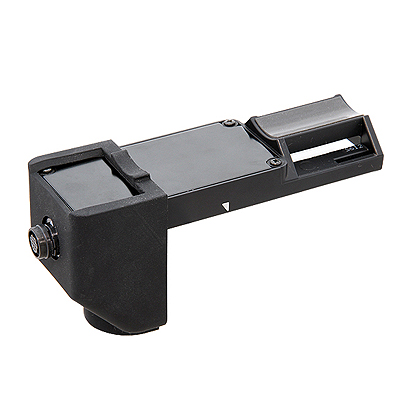

Control Unit（5343040）
-

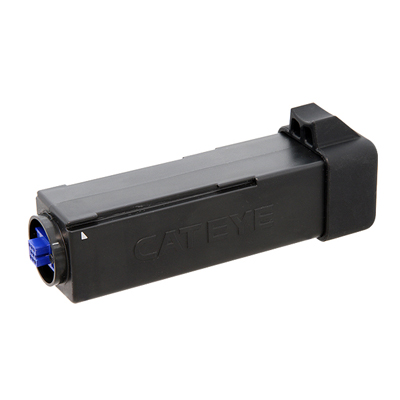

Battery Unit Li-Ion 14.4V 6800mAh:BA-608 BA-608（5343030）
-

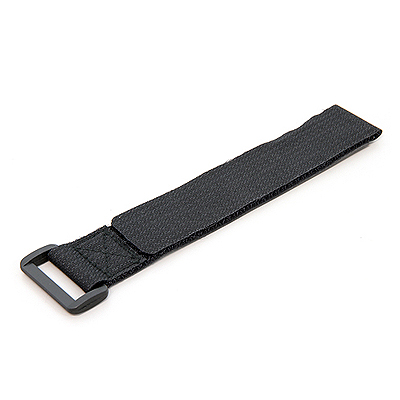

Fixing Strap（5343050）
-

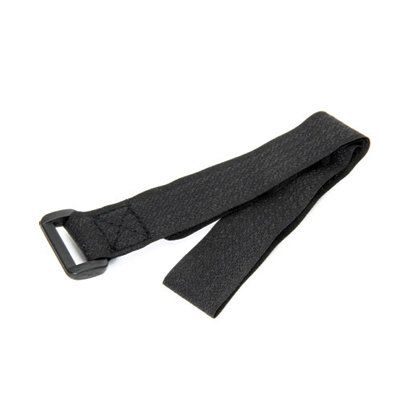

Auxiliary Strap（5342180）
-

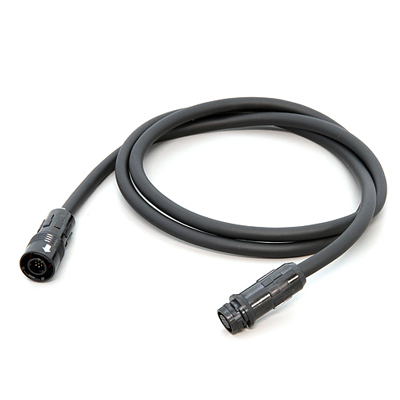

Extension Cable（5343080）
-

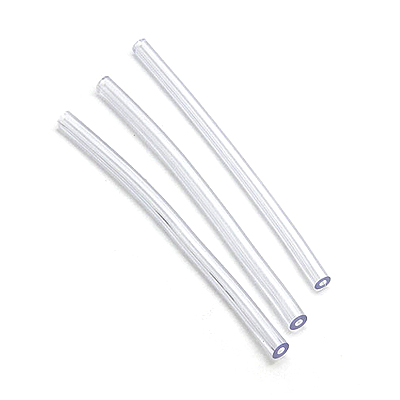

Cable Cover（5342190）
-

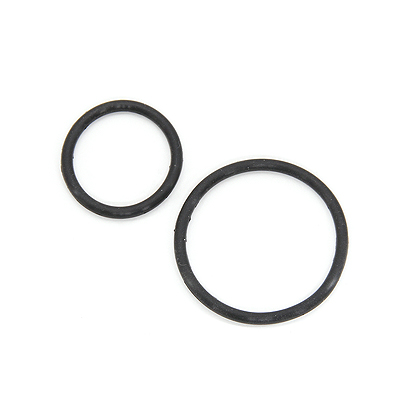

Rubber Band（5447010）
-

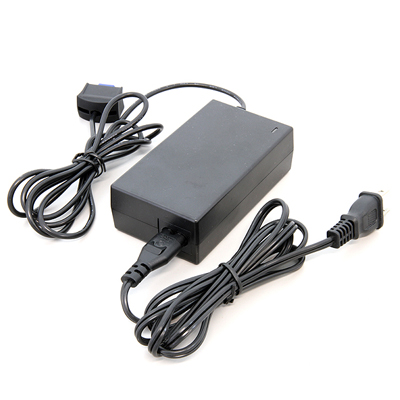

CHR-002（5343060）
MODEL:CHR-002
-

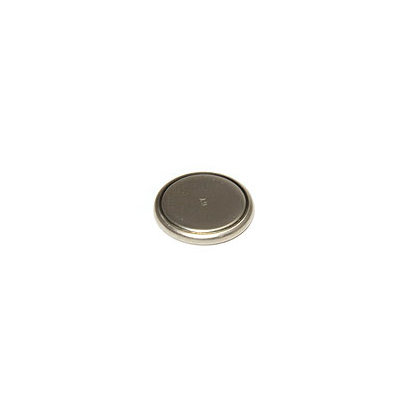

Lithium Battery（1603860）
CR1632 for VOLT6000 Remote Control Switch
