VOLT1700
Adventure starts when the sun goes down.
FEATURE
[HL-EL1020RC]
The two ultra-bright LEDs cast 1700 lumens in an optimized beam to light the trail, road or street. Carry an extra battery cartridge for a quick, tool-free swap on the trail.
- Battery integrated high power rechargeable headlight (1700 lm)
- Powerful wide beam pattern with OptiCube™ lens technology
- Tool-free Lithium-ion cartridge battery (BA-6.8TF) - super easy and safe to change battery on your own
- USB rechargeable (Micro USB cable included)
- Built-in fast recharging circuit
- 3-level battery indicator
- 5 light modes * Charging time: 5.5-15h
- Mode memory function
- FlexTight™ H-34N bracket
- Optional helmet mount and center fork bracket available
Tool-free cartridge battery for VOLT1700 (BA-6.8TF)
Battery indicator (3 levels: orange, red and red flashing)
※Design and specifications are subject to change without notice.
Beam Chart
You can compare two lights side by side. Move the centerline to the right or left to adjust the area. Click on mode button to change modes.
Tech Specs
- Dimension：
- 119.3 x 56 x 47.3 mm
- Weight：
- 256.3 grams (light unit and battery)
- Light source：
- High intensity white LED x 2
- Run time：
- High mode - 1700 lumens： 2hrs
Middle mode - 500 lumens： 5hrs
Low mode - 200 lumens： 15hrs
Daytime HyperConstant mode - 1700/200 lumens： 12hrs
Flashing mode - 200 lumens： 150hrs
- Battery：
- Li-ion rechargeable battery (3.6V-6800mAh)
- Recharge time：
- approx 5.5-15hrs
- Recharge/discharge number of times：
- about 300 times（until the rated capacity drops to 70%）
- Water resistant：
- IPX4
- Other：
- Low battery indicator, lighting mode memory function. Helmet mount / Center fork bracket (optional)
Small Parts
-
Micro USB Cable（5342730）
-
Cartridge Battery BA-6.8TF（5343200）
Li-ion 3.6v 6800mAh
Fits only VOLT1700. -
H-34N Bracket for Headlights（5338827N）
-
H-27N Bracket Spacer（5338733）
-
Bracket Dial for H-34N（5343510）
Option Parts
-

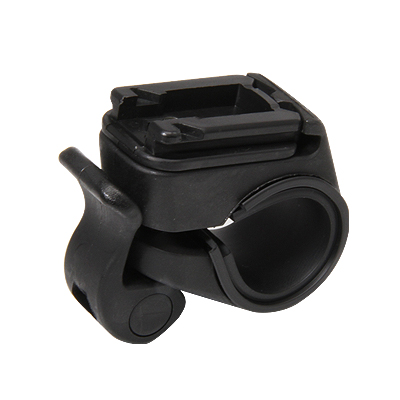

Bracket H-32（5338880）
Option Parts
-

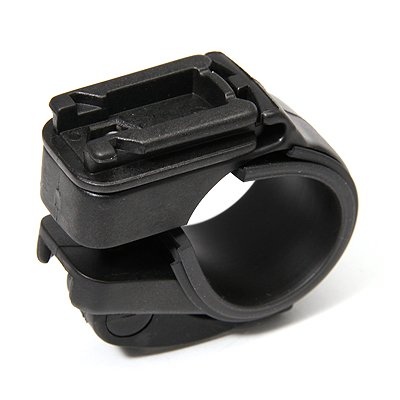

For Oversize Handlebar（5338825）
Option Parts
-
Center Fork Bracket（5342440）
Option Parts
-
Out-Front Bracket 2 OF-200（1604110）
Option Parts
Aluminum bracket compatible with CatEye Wireless computers and headlights. Learn more
