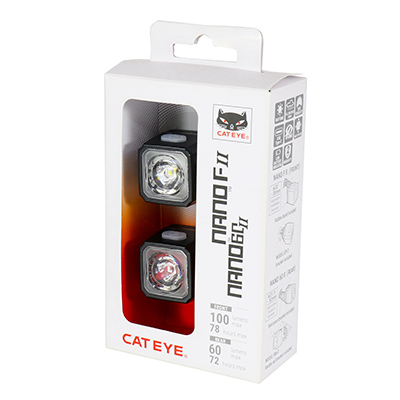

NANO F II / NANO60 II
COMBO KIT
[TL-LD831-F/R]
[NANO F II]
The USB-C rechargeable Nano F II packs serious power into an ultra-compact form. Delivering up to 100 lumens through a precision-engineered OptiCube™ lens, it ensures you're seen on the road—even in broad daylight. Weighing just 24 grams, the Nano F II is barely noticeable on your bars, yet it delivers high-impact visibility with six versatile light modes, including three Daytime HyperFlash™ options designed to pierce through traffic and urban glare.
- Focused lens for maximum visibility with 100 lm output
- Highly visible during daytime
- Daytime HyperFlash 1 and 2 modes provide visibility up to 1km
- OptiCube™ lens technology
- USB-C rechargeable (USB-C cable not included)
- Low battery indicator
- Six light modes including three Daytime modes (High / Low / Flashing / Daytime HyperFlash 1 / Daytime HyperFlash 2 / Daytime HyperFlash 3)
- Mode memory function
- Replaceable battery

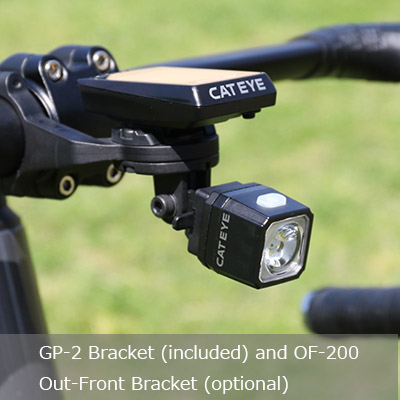

- Tool free versatile mount and GP-2 bracket included
- Snap System™ allows light to be positioned either vertically or horizontally into mount
[NANO60 II]
The compact Nano60 II is equipped with our latest OptiCube™ lens technology, providing daytime visibility. Small enough to forget it's on your bike, but always there when you need it. Snap System™ compatibility allows the light to be attached to a wide variety of mounts, including our saddle rail and rear rack brackets. Includes the RM-3 saddle rail bracket and rubber strap seat post mount.
- Focused lens for maximum visibility with 60 lm output
- Highly visible during daytime
- Daytime HyperFlash 1 mode provides visibility up to 1km
- OptiCube™ lens technology
- USB-C rechargeable (USB-C cable not included)
- Low battery indicator
- Six light modes (High / Low / Flashing / Group Ride / Daytime HyperFlash 1 / Daytime HyperFlash 2)
- Mode memory function
- Battery Auto Save (The mode automatically changes to Flashing when the battery power gets low.)
- Replaceable battery
- Tool free versatile mount and RM-3 saddle rail bracket included
- Snap System™ allows light to be positioned either vertically or horizontally into mount
※Design and specifications are subject to change without notice.
Tech Specs
- Dimension：
- [NANO F II] 30 x 32 x 34 mm (without the rubber strap)
[NANO60 II] 30 x 32 x 34 mm (without the rubber strap)
- Weight：
- [NANO F II] 24g
[NANO60 II] 24g
- Light source：
- [NANO F II] White LED x1
[NANO60 II] Red LED x1
- Run time：
- [NANO F II]
High (100 lumens)：1.75hrs
Low (5 lumens)：28.5hrs
Flashing (10 lumens)：78hrs
Daytime HyperFlash 1 (100 lumens)：23hrs
Daytime HyperFlash 2 (80 lumens)：14.5hrs
Daytime HyperFlash 3 (20 lumens)：40hrs
[NANO60 II]
High (20 lumens)：4hrs
Low (3 lumens)：24hrs
Flashing (6 lumens)：72hrs
Group Ride (10 lumens)：31hrs
Daytime HyperFlash 1 (60 lumens)：19hrs
Daytime HyperFlash 2 (20 lumens)：25hrs
- Battery：
- Li-ion Polymer rechargeable battery (3.7V-340mAH)
- Recharge time：
- Approx. 3hrs (0.5A)
- Mount size：
- [NANO F II] φ22-35mm
[NANO60 II] φ21.5-32mm
- Recharge/discharge number of times：
- about 300 times（until the rated capacity drops to 70%）
- Water resistant：
- IPX4
- Other：
- [NANO F II] GP-2 bracket, Low battery indicator, Light mode memory, Replaceable battery
[NANO60 II] RM-3 saddle rail bracket, Battery auto save, Low battery indicator, Light mode memory, Replaceable battery
