GVOLT100
StVZO 100Lux rechargeable headlight
FEATURE
[HL-EL570G-RC]
- 100Lux rechargeable headlight meeting StVZO
- CATEYE DUAL SYSTEM™

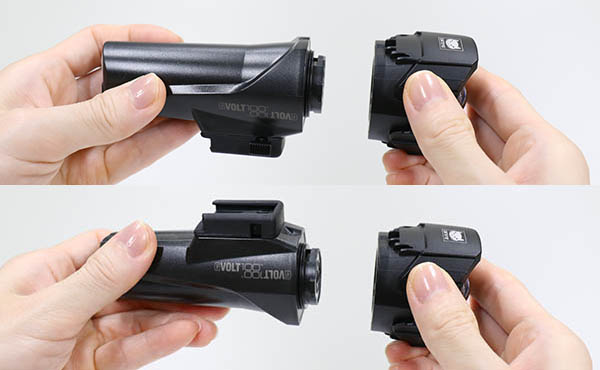

Can be mounted above or below the handlebar by attaching the cartridge battery to the head unit upside down.

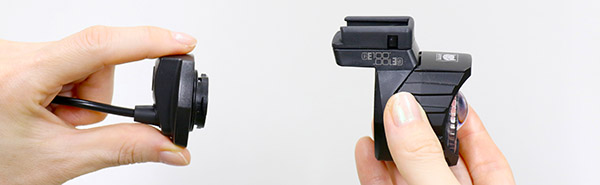

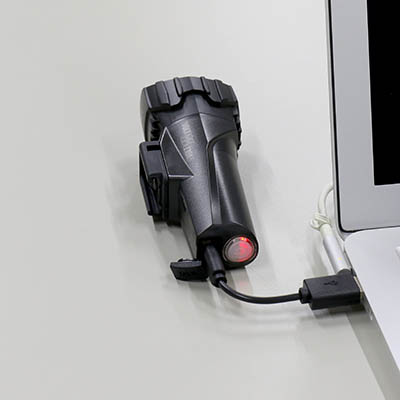

The head unit can connect to E-Bike drive unit by replacing the cartridge battery with the optional E-Bike adapter. - Micro USB recharge
- 3-level battery indicator
- Mode memory function
- 3 light modes (High 1.5h / Middle 3h / Low (Eco)15h) * Charging time: Approx. 3.5h
- FlexTight™ H-34N bracket
Tool-free cartridge battery for GVOLT100 (BA-3.4DS)
Battery indicator (3 levels: orange, red and red flashing)
※Design and specifications are subject to change without notice.
Beam Chart
You can compare two lights side by side. Move the centerline to the right or left to adjust the area. Click on mode button to change modes.
Tech Specs
- Dimension：
- 127 x 54.5 x 45.5 mm
- Weight：
- 181.5g (with battery)
- Run time：
- High - 100Lux : approx 1.5hrs
Middle - 60Lux : approx 3hrs
Low (Eco) - 10Lux : approx 15hrs
* Average runtime at 20℃.
- Battery：
- Li-ion rechargeable battery (3.6V-3400mAh)
- Recharge time：
- approx 3.5 hrs (1.5A)
- Recharge/discharge number of times：
- about 300 times（until the rated capacity drops to 70%）
- Water resistant：
- IPX4
- Other：
- K-No.1808
Battery indicator, lighting mode memory function.
Small Parts
-
H-34N Bracket for Headlights（5338827N）
-
H-27N Bracket Spacer（5338733）
-
Bracket Dial for H-34N（5343510）
-
Micro USB Cable（5342730）
-
Cartridge Battery BA-3.4DS（5336840）
Li-ion 3.6v 3400mAh
Compatible with GVOLT100 -
E-Bike adapter（5336920）
Option Parts
E-Bike adapter
Compatible with GVOLT100 / GE100 -
Protective cover（5336860）
Option Parts
Protective cover For BA-3.4DS/E-Bike adapter
-
Center Fork Bracket（5342440）
Option Parts
-
Out-Front Bracket 2 OF-200（1604110）
Option Parts
Aluminum bracket compatible with CatEye Wireless computers and headlights. Learn more
-
GP-Bracket（5445340）
Option Parts
